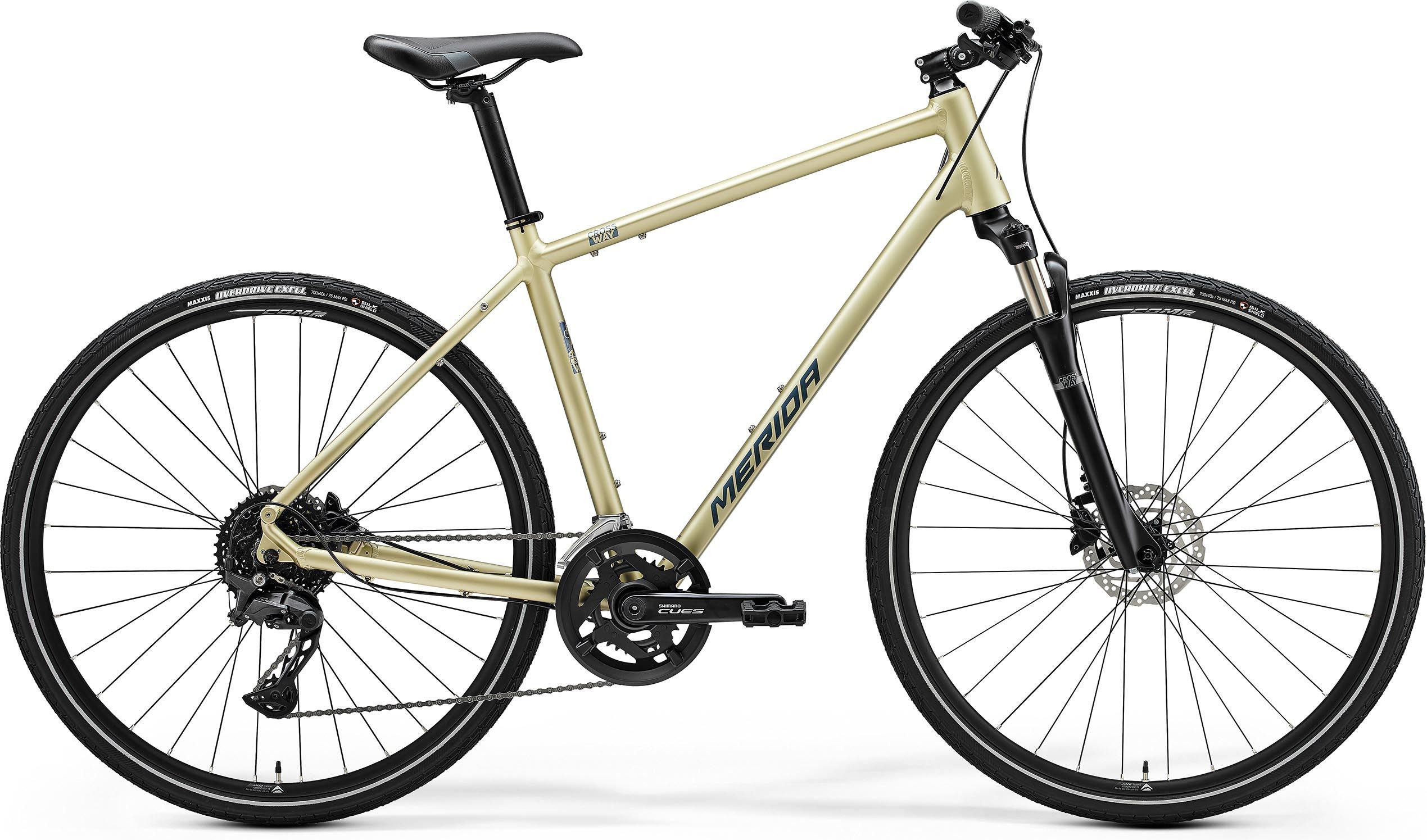

20 speed hybrid with lockout front fork, hydraulic disc brakes and Shimano center lock hubs.
The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting. All disc brake models use the same lightweight aluminium frame with a steep, sloping top tube providing plenty of standover height. For ultimate adaptability, the Crossway range can be equipped with mudguards, racks and kickstands.
Highlights:
Frame |
TFS III - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c |
Fork |
SR Suntour NX1-DS-LO-700C-63; Coil; 63mm travel; Lockout; Max tyre size: 700x50C |
Gears | 20 |
Shifters |
Shimano CUES U6000 |
Front Derailleur |
Shimano CUES U6010 |
Rear Derailleur | Shimano CUES U6020 10S |
Bottom Bracket | Shimano MT501 |
Chain | KMC xGlide |
Chainset | Shimano CUES U4010; 46-30 tooth chainset ; Aluminium; Crank length - 170mm (XXS/XS/S), 175mm (M/L/XL) |
Cassette | Shimano LG300; 11-39 teeth; 10 speed |
Brake Lever | Shimano MT200 |
Front Brake | Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
Rear Brake | Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
Grip |
Merida Expert EC |
Handlebar | Merida Comp CC; aluminium; 660mm wide; 25mm rise |
Stem | Merida Comp TK; aluminium; 31.8mm diameter; adjustable - Length - 95mm (XXS-XS-S-M), 110mm (L-XL) |
Headset | Merida M2346 Neck |
Pedal | VP Components VPE-891 |
Saddle | Merida Cross Sport |
Seatpost | Merida Expert; 30.9mm diameter; 15mm layback; 300mm (XXS/XS); 350mm (S/M): 400mm (L/XL) |
Wheel Size | 700C |
Rims | Merida Comp TK; 20mm inner rim width; 17mm rim depth; aluminium |
Spokes | Black Stainless |
Front Hub | Shimano QC300; 100 x 9mm; 32 spoke; Centerlock |
Rear Hub | Shimano QC300-HM; 135 x 9mm; 32 spoke; Centerlock |
Front Tyre | Maxxis Overdrive Excel; 700 x 40C; wire bead; reflective stripe, Silkshield |
Rear Tyre | Maxxis Overdrive Excel; 700 x 40C; wire bead; reflective stripe, Silkshield |
