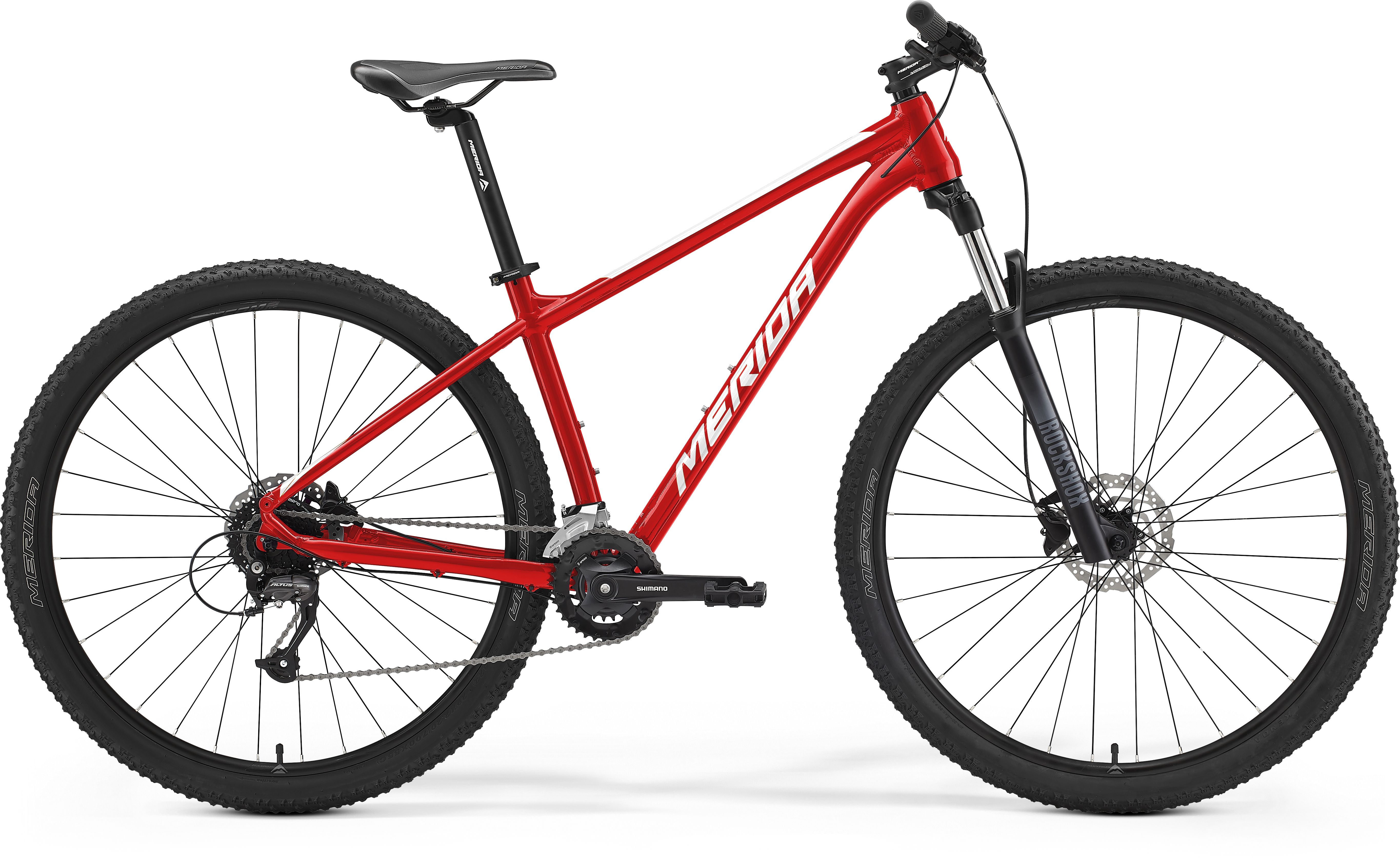

29er hardtail with sophisticated TFS aluminium frame, 2 x 9 drivetrain, RockShox Judy fork and complete Shimano drivetrain, Shimano hubs and hydraulic disc brakes.
Meridas heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot. All Big Nine and Big Seven models use a sophisticated TFS frame featuring the latest technology: full internal cable routing for a clean, neat set up, tapered headtube offering the potential for future upgrades inboard disc brake mounts protect the brake and maximise stopping power.
As much Shimano componentry as possible has been added to complement the modern frame and enhance reliability. There are a wide range of sizes; Big Nine for taller riders and Big Seven for shorter riders with a healthy overlap between the two. For riders in the middle, riding style can be taken into account. If you are looking for speed and efficiency choose a Big Nine, if you are looking for agility choose a Big Seven.
Highlights:
Frame |
TFS III - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29 x 2.25 |
Fork |
RockShox Judy TK; Coil; 100mm travel. Lockout; 46mm offset. Max. tyre size: 29 x 2.25 |
Gears | 18 |
Shifters |
Shimano ST-EF505 |
Front Derailleur |
Shimano FD-M2020-TS |
Rear Derailleur | Shimano RD-M370 |
Bottom Bracket | Shimano BB-UN100 |
Chain |
KMC M99 |
Chainset | Shimano MT101-2; 36-22 tooth chainset. Crank length: 175mm (M,L,XL,XXL) |
Cassette | Shimano CS-HG200; 11-32 teeth; 9 speed |
Brake Lever |
Shimano ST-EF505 |
Front Brake | Power DS-100HT; 2 piston hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
Rear Brake | Power DS-100HT hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
Grip |
Merida EC |
Handlebar | Merida CC; aluminium; 690mm wide; 15mm rise |
Stem | Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Stem length: 70mm (S), 80mm (M), 90mm (L), 100mm (XL), 110mm (XXL) |
Headset | Merida M2345 |
Pedal | VP Components, VPE-891 |
Saddle |
Merida Sport comfort |
Seatpost | Merida Comp CC; aluminium; 30.9mm diameter; in-line |
Wheel Size | 29 |
Rims | Merida CC; 17mm inner rim width; aluminium |
Spokes | Black Steel |
Front Hub | Shimano TX505; 100x9mm; 32 spokes; Centerlock |
Rear Hub | Shimano TX505; 135x9mm; 32 spokes; Centerlock |
Front Tyre | Merida K1080; 29 x 2.2; wire bead |
Rear Tyre | Merida K1080; 29 x 2.2; wire bead |
